LINE INTERACTIVE UPS


line interactive ups, inverter, SYSTEM, ups1 & ups2, respectively under healthy, synchronizes, critical inverter, simultaneously transferning, critical load, bypass by activating, corresponding rectifiers, Jet electro, electronic manufacture, Inverter, UPS, Stabilizers, Oil-transformer, power conversion, power electronics, marketplace, design and manufacture, control circuits, Power, experienced & conscientious




UPS Systems manufactured by JET ELECTRO - MECH ENGG.(P) LIMITED. Are installed all over India and abroad, and are being used for computers, medical equipment, communication, process control equipment, research centers and other critical applications.




............FEATURES



- Wide input range 135-300 Volts


- 92.5% efficiency


- Reliable MOSFET Technology UPS


- Electronic overload protection


- Short circuit proof


- Phased loop locked to AC mains for synchronized transfer.
(It is the feature you will not find in other UPS.)



SPECIFICATION



  INPUT

  Voltage - 135-300 Volts AC illuminator
      145-300 Volts AC 650 VA JET ELECTRO
  Frequency - 50+-5Hz




  OUTPUT FROM UPS

  Voltage - 220 Volts RMS+-4%
  Frequency - 50+-0.5 Hz
  Waveform - PWM (Q-Sine Wave)
  Efficiency - 93%



  REGULATION ON AC MODE
  Voltage - 220+-9%

  TRANSFER TIME
  Typical - 3 milliseconds
  Maximum - 6 milliseconds



  OPERATING ENVIRONMENT
  Temperature - 0-55 degree Centrigrade



  SPIKE / SURGE PROTECTION
  Clamping Voltage - 320 volts
  Line noise attenuation - 40-80db

  BATTERY CHARGER
  Type for internal battery - Constant voltage (Current limit)
  Type for external battery - SCRCCCV (constant voltage & current)

  VISUAL INDICATION


  MAIN(AC) ON*
  CHARGING ON*
  OUTPUT ON
  UPS ON BATTERY* (present in 650 VA JET ELECTRO Model)
  OVERLOAD
  LOW BATTERY*

  AUDIBLE INDICATION


  UPS ON BATTERY
  OVERLOAD
  LOW BATTERY


IN - BUILT PROTECTION
  Output overload, Output short circuit, Battery low, Battery overcharge, AC input overload, Battery short circuit.

  SERVICE: Jet Electro is using WIRELESS design, which enhance the reliability of the UPS systems. It is also very easy to service the UPS in case of break down.

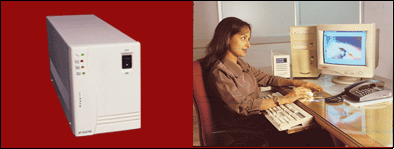

Feels good, looks great. The new JET-ELECTRO is one of the most compact UPS you will find.






............................simultaneously transferning, critical load, bypass by activating, corresponding rectifiers, Jet electro, electronic manufacture, Inverter, UPS, Stabilizers, Oil-transformer, power conversion, power electronics, marketplace, design and manufacture, control circuits, Power, experienced & conscientious





The technology is latest and in tune with the best brands available in the international market. When you require a UPS systems that not only regulate the voltage but also filters out transients and provides back up power; in case of mains supply failure, think JET-ELECTRO.



ADVANCE TECHNOLOGY WITH POWER AVR AND FOR FAST CHANGEOVER



State-of -the-art ups designs employ power MOSFETS for unmatched efficiency and reliability. A unique high speed sensing circuit which is phase loop locked to the mains. This circuit ensures instantaneous in-phase transfer from AC mains to inverter an back to AC. The safety circuit protects both the UPS and computer from damage in the event of short circuit or accidental overload.

  Line Interactive Design


It has a unique high speed sensing circuit to filter out spikes, and to detect voltage fluctuations, providing clean conditioned power to the attached computer or machine


  Working of UPS ( 650 VA JET ELECTRO and Illuminator)


Our UPS instantly corrects voltage fluctuation between 145-300V (650 VA JET ELECTRO), 135-300V (Illuminator), without draining the battery. The in- built transient suppressor and line noise filter protects the attached equipment from spikes, surge and line noise. At the mere hint of Low Voltage, High Voltage or power failure, UPS generates power from its attached batteries & provides instant- automatic backup and switches back to mains and recharge batteries, with the return of power.


  High reliability due to RIGGED CONSTRUCTION


The JET- ELECTRO brand of UPS is the ideal power protection and power conditioner device designed by Jet Electro- Mech's in-house R&D, these LINE INTERACTIVE UPS is idle for hostile power condition, and works reliably where most other UPS fails. The main focus in designing incorporates complete shut down on low battery. In- built comprehensive protection against short circuits, overload, spikes ensure total reliability.
UPS Systems manufactured by JET ELECTRO - MECH ENGG.(P) LIMITED. Are installed all over India and abroad, and are being used for computers, medical equipment, communication, process control equipment, research centers and other critical applications.


  COMPANY OWNED SERVICE NETWORK


The Jet - Electro brand of UPS comes with an extensive and expanding network spread across the country. The network consists qualified team of engineers who provide a complete Range of presales and post sales service and support.


  Models Available: (VA- No. of batt 12V smf) 500-1/ 650-2/ 1000-2/ 1000-4/ 1250-4/ 1500-4/ 1500-6/ 2000-6/ 2000 -8 illuminator

External battery UPS models for longer back-up: 500 / 600 / 800 / 1000 / 1250 / 1500 / 2000 / 3000.
